SPECIFICATIONS

Brand Name: Asia-Teco

Certification: CE,FCC

Connectivity: Bluetooth

Direction: Direction Reversible

Doorknob Funcition: Biometric,Key & Keypad

Hign-concerned Chemical: None

Installation Method: Drilling installation

Lock-picking time: x1.5 s

Material: ABS plastic panel, stainless steel lock core

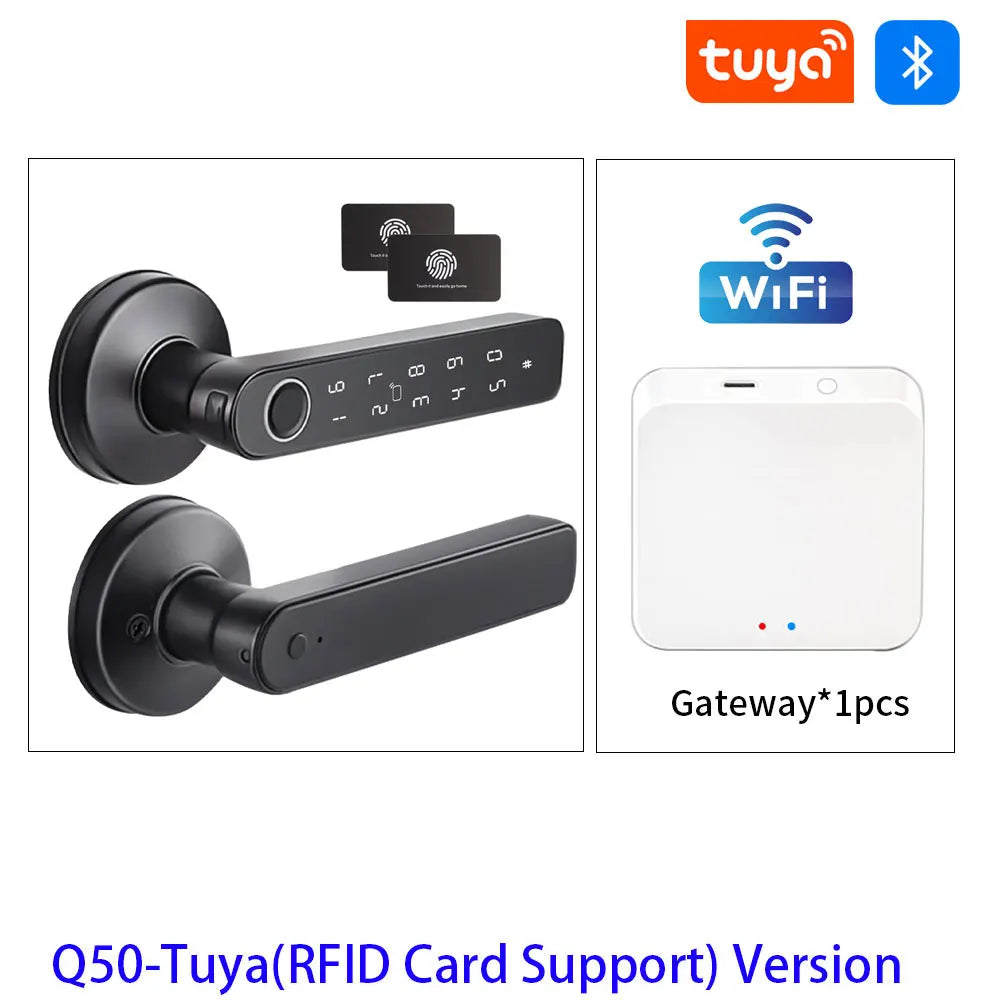

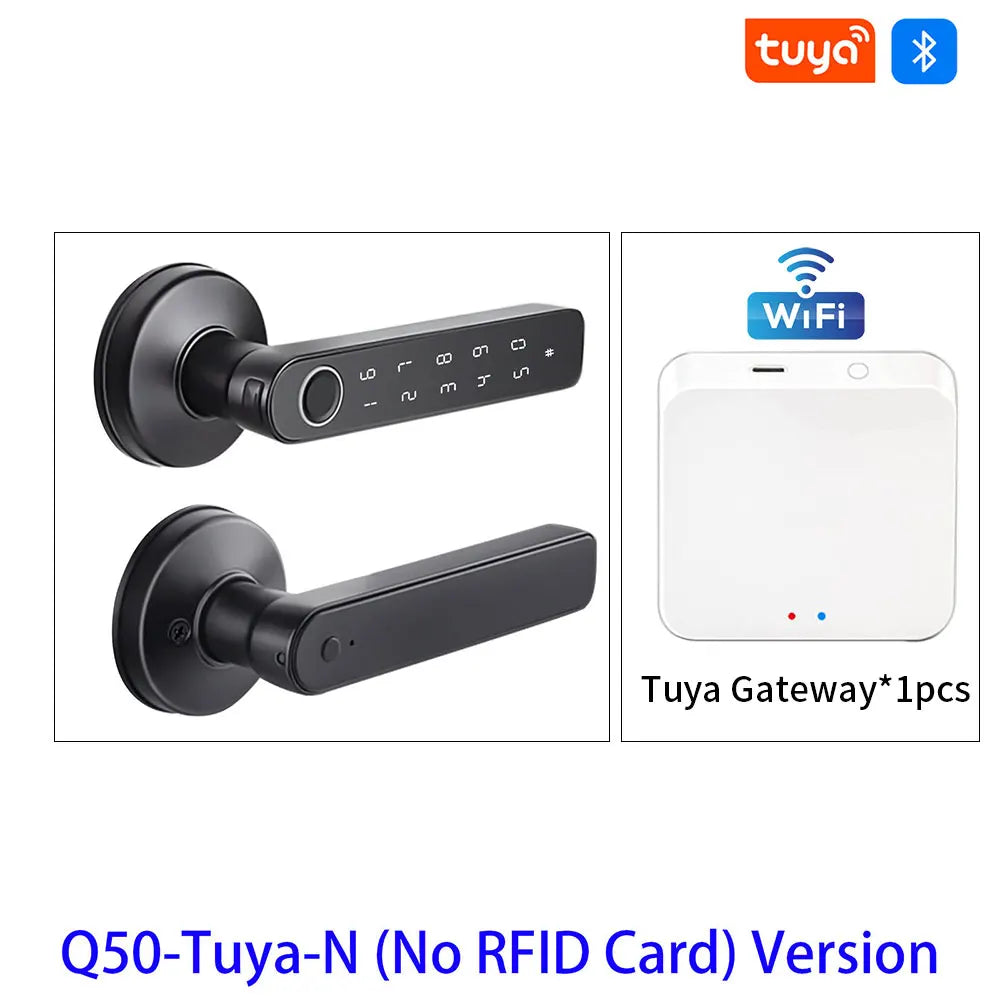

Model Number: Q50-tuya

Operating temperature range: -20-70℃

Origin: Mainland China

Power Source: DRY BATTERY

Power Supply: DRY BATTERY

Power supply mode: 4 AAA Alkali-saving dry cell

Smart home platform: Tuya

Special Features: Support Gateway

Suitable Door Type: Wooden Door

Voltage range: 4.5-9V

Waterproof Grade: Compliant with IP65 standard

Ways To Unlock: App,Bluetooth,Mechanical Keys,Card,Password

voltage: 4.8V

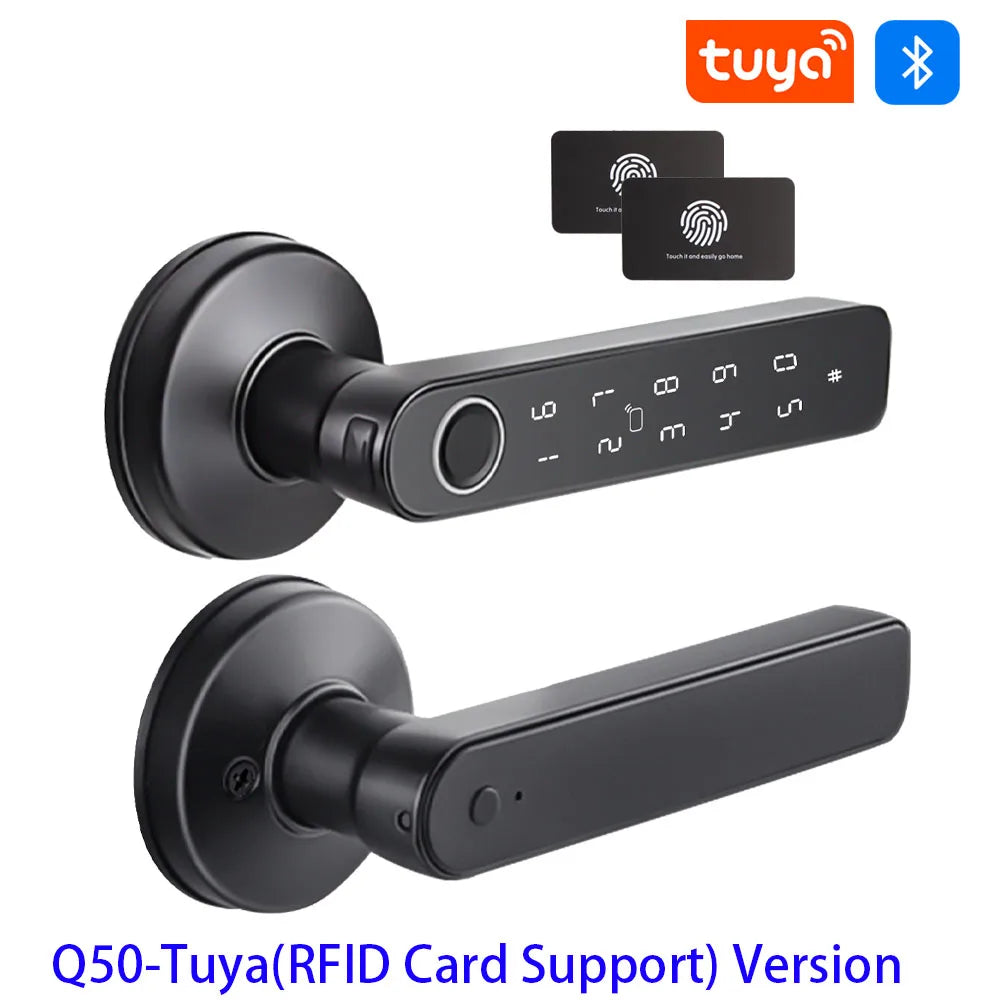

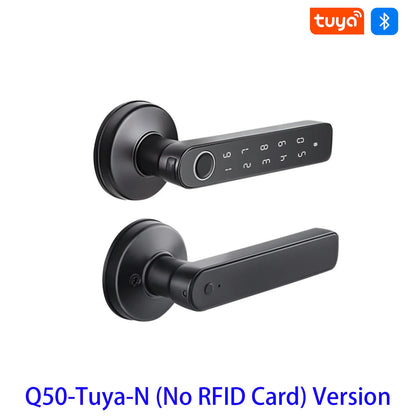

M5 Tuya BLE Fingerprint Door Lock Smart Digital Electronic Lock with Password/Key/IC Card(Optional)/ Smartlife/ Tuya APP Unlock

1、Function

1.Bluetooth unlock on phone

2.Remote Distribution of electronic keys

3.password unlock

4.Fingerprint unlock

5.Lock-picking records Surveillance

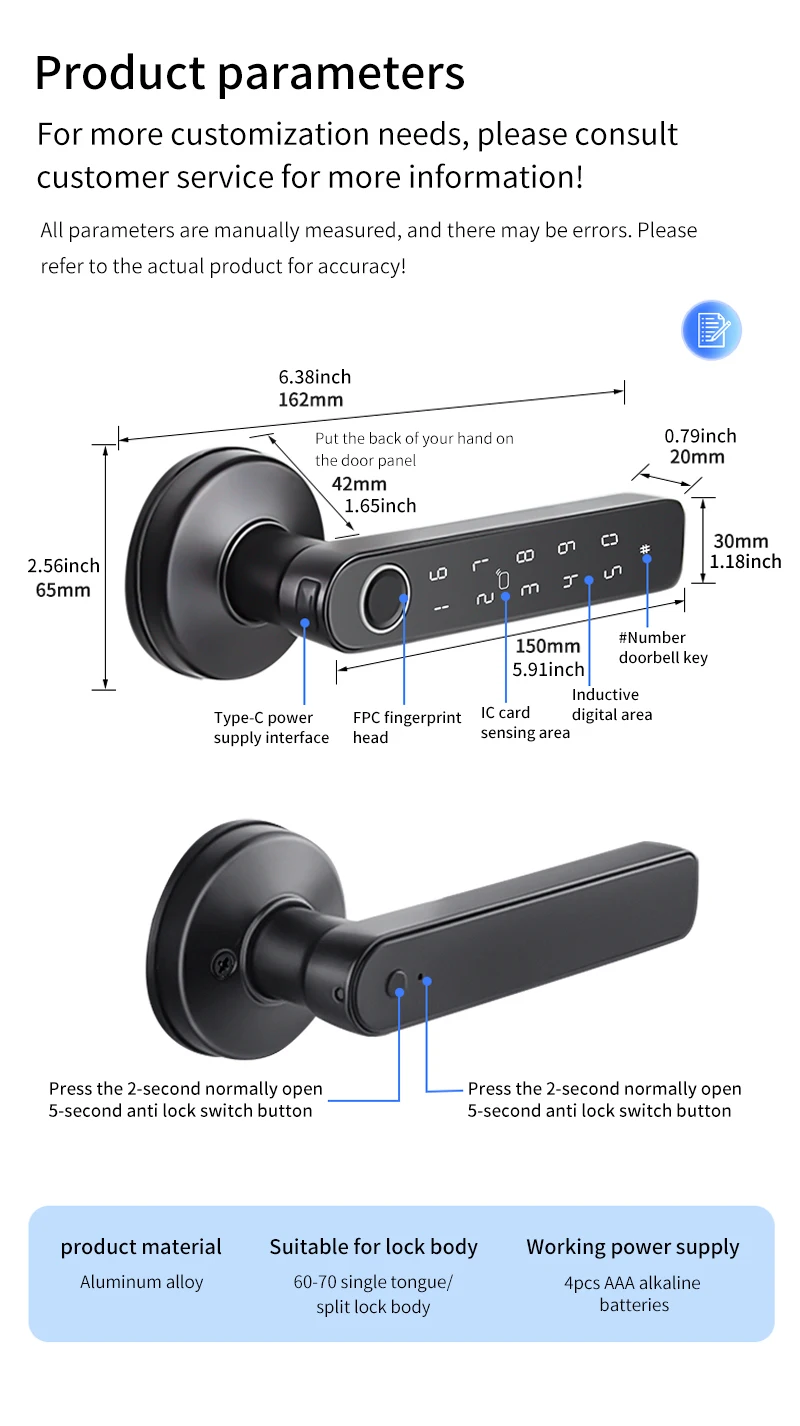

2、Performance parameter

Bluetooth Standard:Bluetooth 4.1 BLE

Supported Cell phone system:Android4.3/10S7.0

Power supply mode:4pcs AAA Alkali-saving dry cell

Material: ABS plastic panel, stainless steel lock core

Low Electricity alarm

voltage:4.8V

Voltage range: 4.5-9V

Standby Current:65 micro amperes

Operating Current:Less than 200 ma

Lock-picking time: x1.5 s

Operating temperature range:-20-70℃

touch key Types:Capacitive touch key

Number of passwords:Custom and permanent passwords:100

Other dynamic passwords:100

Lock Unlock mode:APP BLE, passwords, fingerprints, mechanical keys,IC Card(Optional)/Gateway Remote Unlock(Optional)

Motor interface output voltage:Battery voltage reduction 0.3V

Fingerprint head type:Semiconductor fingerprint Sensor

Fingerprint capacity:50 fingerprints

Waterproof Grade:Compliant with IP65 standard

False Accept Rate:<0.001%

False Reject Rate,:<1.0%

Attention: For doors over 4cm thick, springs must be installed in the square holes of the indoor handles.

Dear user; Thank you for purchasing the smart door lock

To improve the quality survival with innovative technology, to create the world's most outstanding, most innovative products so that enterprises become the industry benchmark .We always adhere to the " quality surviva, service and development'business philosophy, In the inteligent lock industry, all constantly improve the product quality system. our company keep up with
the pace of the times . We always walk in the forefront of the industry, and always steadfastly protects the people's property safety! From products to service ,we always pursue to provide you with a full range of intimate and comfortable service!Thank you for your support for smart door lock!!

Disclaimer: We have done our best to ensure that the information provided in this manual is correct and reliable, but we cannotfully guarantee errors before and during printing. Sometimes we in order to improve the
performance, reliability and safety of components and systems, may upgrade the product, which may be somewhat inconsistent with the contents of the manual, but does not affect the actual operation, if there is a change is not known, please understand! Our company will update the content regularly. lf you have any questions, please call our company to answer The final interpretation of the entire contents of this manual is the right of the Company. The functions described in this statement are not used as a reason for the use of this product for special purposes and the Company shall not be liable for accidents and hazards caused by the customer's improper operation.
